C.R. Grampian Stock Coach Kits

65' 12 wheel "Grampian" corridor stock built 1904-5.

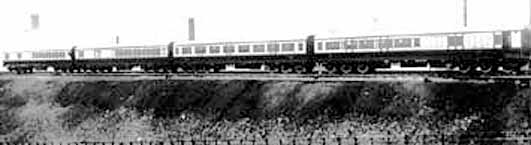

Posed rake of Grampian StockPosed rake of Grampian Stock

The prototypes of these coaches date from 1904/5 and were reputed to be the finest ever built by a Scottish railway for purely internal traffic. Initially the sets ex-Aberdeen were formed :-

BCK + BTK / BTK + CK + BTK
Edinburgh / Glasgow

The full thirds were used as strengtheners when required. Some of each diagram except D97 were dual fitted from new. Such rigidity of formation did not last long and these coaches were soon found on many parts of the system and south of the border on W.C.J.S. turns. Apart from a few accident victims and wartime withdrawals, general withdrawal started in about 1948 with the last going in 1955.

We are proud to say that all varieties of 12 wheel corridor stock are now represented in the Caley Coaches range,

Download kit prototype notes and instructions

Scale drawing of D94

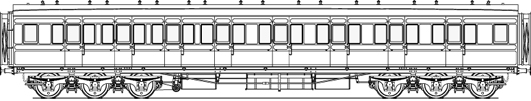

D94 (was CC12)  4mm scale Corridor Composite Diagram 94.
£66.00. Packed Weight 500g

Deposit of £30.00 will be charged at this time with balance invoiced when ready for delivery.

Scale drawing of D95

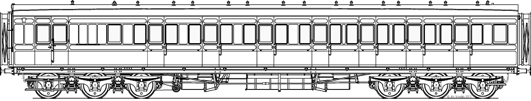

D95 (was CC11)  4mm scale Corridor Brake Composite (3 1st / 4 3rd cpt.) Diagram 95.
£66.00. Packed Weight 500g

1 only left in stock

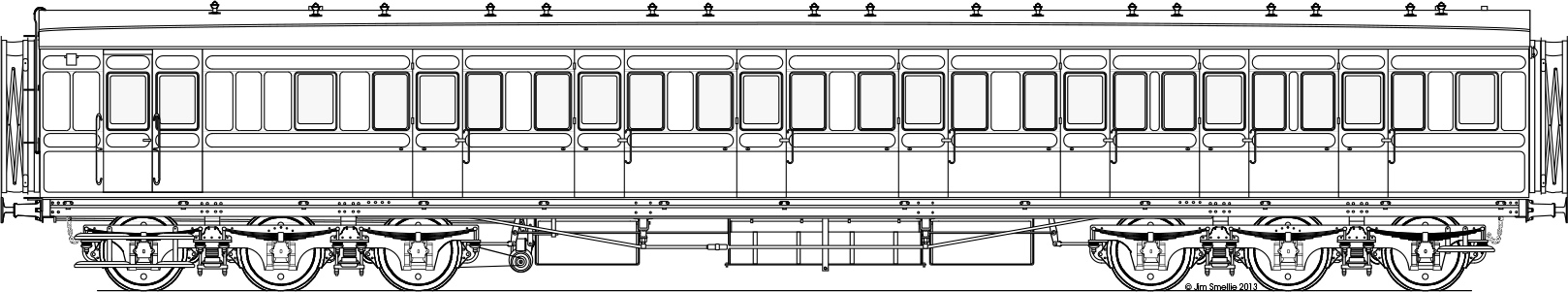

Scale drawing of D95A

D95A  4mm scale Corridor Brake Composite (4 1st / 3 3rd cpt.) Diagram 95A.
£66.00. Packed Weight 500g

Deposit of £30.00 will be charged at this time with balance invoiced when ready for delivery.

Scale drawing of D95B

D95B  4mm scale Corridor Brake Composite (2 1st / 5 3rd cpt.) Diagram 95B.
£66.00. Packed Weight 500g

Deposit of £30.00 will be charged at this time with balance invoiced when ready for delivery.

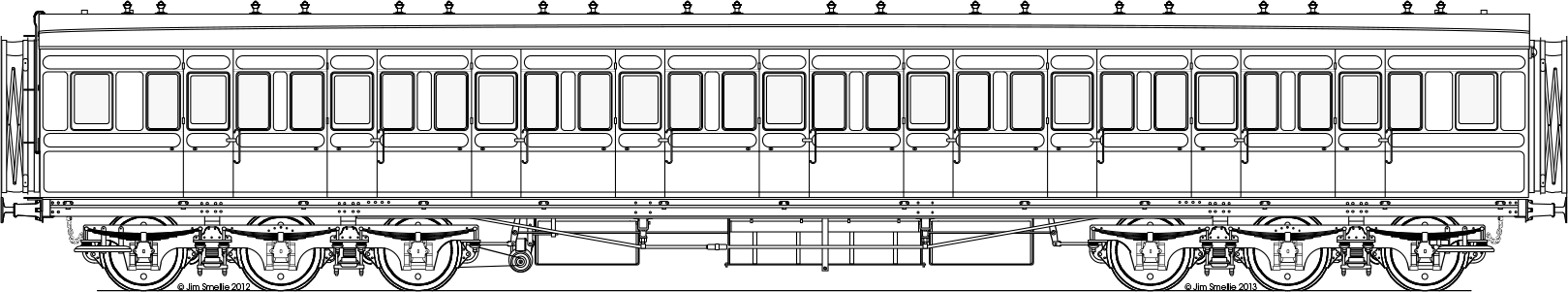

Scale drawing of D96

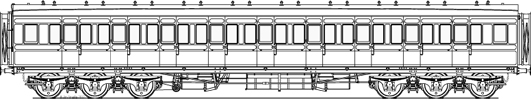

D96 (was CC13)  4mm scale Corridor 3rd Diagram 96.
£66.00. Packed Weight 500g

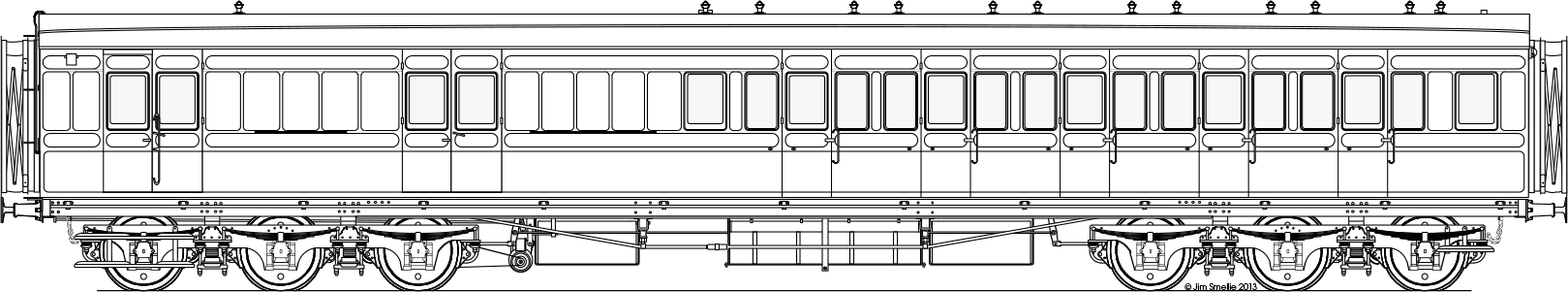

Scale drawing of D97

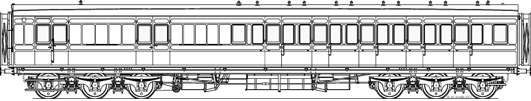

D97 (was CC10)  4mm scale Corridor Brake 3rd (5 cpt.) Diagram 97.
£66.00. Packed Weight 500g

1 only left in stock

Scale drawing of D97A

D97A  4mm scale Corridor Brake 3rd (7 cpt.) Diagram 97A.
£66.00. Packed Weight 500g

1 only left in stock
